Sato S84ex / S86ex

You can equip your print-apply system with a printer module Sato® S84ex or S86ex. On our labeling application systems, you just need to tight a few screws (standard drillings), connect the cable on the applicator port, select one of the application modes in the printer's menu and it's done.

Main Features

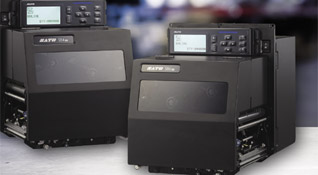

Sato S84ex / S86ex

Printers from the manufacturer Sato®, designed to be used within a print-apply system. They are one of the fastest models in the market, reaching speeds around the 400mm/s mark. The printers S84ex and S86ex have the following features:

  • Resolution: 203dpi (optionally 305dpi or, only on model S84-ex, 609dpi)
  • Print Width: 104mm (S84ex) or 167,5mm (S86ex)
  • Memory: 64MB RAM / 48MB Flash
  • Max Roll Width: 131mm (S84ex) or 180mm (S86ex)
  • Max Print Speed: 152mm/s (S84-ex 609dpi), 305mm/s (S86-ex 305dpi), 356 mm/s (S84-ex 305dpi and S86-ex 203dpi) or 406 mm/s (S84-ex 203dpi)
  • Transmissive and reflective label sensors
  • Drivers for Windows, Linux, OSX, SAP
  • Applicator Interface Port
Contact Us >>

Model: S84ex

Sato S84ex

4 inches model for print widths of 104mm. Available in LH and RH (left-/right-hand) variants with resolutions of 203dpi or, optionally, 305dpi and 609dpi.

Contact Us >>

Model: S86ex

Sato S86ex

Wider 6 inches model that can reach print widths of 168mm. Available in LH and RH (left-/right-hand) variants with resolutions of 203dpi or, optionally, 305dpi.

Contact Us >>

Popular Options

Options

Do not forget to check the extras that you would like to install. The most popular options for these printers are (some options can't be installed at the same time and are only available for certain models):

  • Thermal-Transfer (ribbon mechanism)
  • 305 or 609dpi Printheads (609dpi only on model S84-ex)
  • Wireless Network (Wi-Fi 802.11 b/g/n)
  • RFID (UHF ISO 18000-6C)
Contact Us >>

Documentation

Sato S84ex / S86ex Documentation

Photos

Photo 01 Photo 02 Photo 03 Photo 04 Photo 05 Photo 06 Photo 07 Photo 08 Photo 09 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 Photo 19 Photo 20 Photo 21 Photo 22 Photo 23 Photo 24
The specifications shown on this page may vary depending on the versions/models of the systems and may contain errors and/or may be subject to future changes. Double check these specs with the ones available on the respective brochures/technical sheets and always mention the critical requirements of your particular application when ordering/inquiring for prices.
