↩︎ All-in-One Printheads

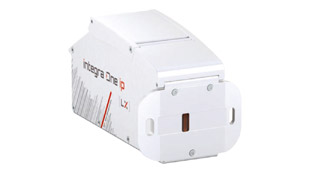

integra One ip LX

integra One ip LX

All-in-one printhead with a built-in controller. It is very compact and has an innovative and intuitive user interface. It is a special version of the beloved integra One system with IP65 protection.


PDF Brochure Mark-o-Print Product Overview (2022)

Photo 01

IP65 Protection - Withstands Harsh Environments

With IP65 protection to withstand water splashes and dust, it is ready for the harshest environments. The protection is provided by a top cover with rubber retainers and the injection of compress-air to create a positive atmosphere inside the system, which blocks dust and water from entering.

No More Cables Between Printhead and Controller

This printhead is completely independent. You can change settings and start print jobs with variable input using only the iLogik button or using the iDesign software instead. The printhead comes with every port that you may need and it has the controller itself inside.

Funai® Technology

Funai Technology

With TIJ (Thermal Inkjet) technology from Funai®, you can print at high-speeds even when using a higher resolution. And the print quality is kept even when the printhead is up to 10mm away from the product, which is double the usual distance for the TIJ technology.

Bundled Software

iDesign Software

The system includes the software to create texts and start print jobs, manage configurations and monitor all the controllers in your factory. With no extra cost at all! Know more at iDesign.

High-Quality Prints at Incredible High-Speeds

Print small texts like batch numbers and expiration dates at high resolutions to obtain impressive and sharp texts with smooth outlines without aliasing effects whatsoever. And you certainly will not need to slow down the velocity of your production line conveyor, because the system can reach unbelievable print speeds.

Directly Change Settings and Start Prints

You can perform tasks such as changing configurations, select the text and start the print job after typing in the variables directly on the controller. The high-resolution OLED screen shows animated icons and it is very easy to navigate through the menus with the iLogik button. A short click to enter and confirm changes and holding the button a little longer cancels and goes back to the menu above. Turning the button, you can change the values very quickly and intuitively, even when you need to input text. You will only believe how easy it is when you try it.

Design Texts at Your PC

Create print texts comfortably at the PC using the iDesign software and transmit them easily to the controller.

Make Simple or Complex Print Texts

The controller has an internal clock so that you can print dates and expiration dates automatically. Besides that, you can put text with any font and style, barcodes, images and many more things. Learn about everything you can do by visiting the iDesign software page.

Barcodes that are Always Readable

Use a shaft encoder to always keep the system synchronized with the effective conveyor speed and print 1D and 2D barcodes on any surface. It is possible to enable and configure a barcode correction algorithm that predicts the ink overflowing outside the intended boundaries on materials where the ink smudges, and shaves off certain pixels. The results are incredible and it really works!

Send and Receive

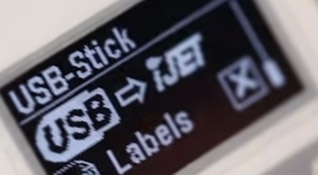

OLED Display

Transfer print texts and files such as fonts and images, from the PC to the controller or import them from the controller to the PC. You can do the communication using any connection type: USB (using a cable or stick), Ethernet, wireless (on the WiFi model), or RS232 (requires adaptor cable).

Internal Product Sensor

The printhead already has an internal product sensor built-in and so, for most situations, you will not need to buy or mount any sensors. However, if needed, it is still possible to connect an external sensor.

Maintenance Free

With IP65 protection, these controllers are very sturdy and reliable, with a durable case made of milled and anodized aluminum. With TIJ (Thermal Inkjet) technology from Funai®, you can say goodbye to clogs, cleaning and maintenance tasks. When you change the cartridge, you get brand new nozzles again.

Side or Top Printing

You can mount the printhead using a bracket for side printing or using a bracket for top printing. The information on the display can be rotated 180 degrees to make it easier to use when mounting the system for top printing on the products.

Cost per Print is Almost Zero and Without Interruptions

A single cartridge can easily last for tenths or even hundreds of thousands of prints. Surely, it all depends on the kind of text that you want to print, the configurations and ink type, but normally the costs per prints are a tiny fraction of a cent.

Smart Cartridges

Know when the cartridge is about to run out of ink. Besides informing about the ink level, the printhead also detects the type of ink that is being used and the print parameters are automatically adjusted to achieve the best results.

Have Full Print Control

You can print on products that travel from the left to the right or from the right to the left, by changing a simple configuration. Choose the resolution, the speed, the zoom and the orientation (normal, upside down or mirrored). The printheads have two nozzle rows (A and B) and you can control how to use them. In the normal mode, the controller alternates between the two rows (A~B). If a row has defective nozzles, you can choose to exclusively use the other row. When using a shaft encoder to have a precise control of the print speed, you can opt to use both rows at the same time (A+B) to obtain even darker print results.

Receive Warnings

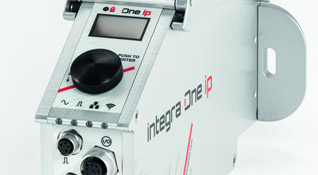

3-color LEDs

The controller includes 3-color warning LEDs and shows status messages on the screen. You can also connect an optional alarm lamp (with or without buzzer) to the controller.

Quiet and Energy Efficient

This system consumes less energy than a computer and does not have any fans, which makes it completely quiet, not to mention that the internal components are protected from dust accumulation.

The Integrator's Paradise

The controller allows several input and output signals, so that you can synchronize the system with your production line. The input signals are configurable to work in PNP or NPN using the iDesign software. As inputs, you can send signals to: invert the print direction, rotate the print 180 degrees, stop the print (does not print while the signal is active), pre-warm the cartridge, change the text being printed (switch between 4 texts), among others. As for the outputs, you can know if the cartridge has low ink, if the cartridge is empty, if the system is green (ok), if the system has warnings, if the system is in error and if the system is ready to print or a print was triggered.

Approved by Programmers

The communication with the controllers is completely clear. The saved texts (the "labels" that are printed directly on the products) are pure text files that can be read and modified in any programming language. The format of the commands for communication and for text creation ("labels") are all well-documented and we can provide such documentation. Dedicated software can be developed to send or receive texts and configurations and to start print jobs using a network connection or USB/RS232 communication.

Approved by System Integrators

With the Weber® policy for Global Export, the system integrator companies can export our inkjet systems as part of a bigger system and the final user gets all the technical support in the destination country, performed by the local distributor of that said country, all completely transparent and without additional costs. All that a system integrator must do is mention that the system is for resale and when the destination country is known, inform us about it so that we can proceed with the transfer of responsibility of the system to the local distributor.

Pick Your Version

If you do not need every single feature, you can obtain a better price by choosing a more basic version. And the best is that you can, at any moment, do an upgrade to a higher version. You only need to tell us the serial number or MAC address of the system and we will send you an activation code to unlock your controller. The differences of each version are shown on the table below:

Function Print Basic Advanced Pro
Max. Number of Printheads 1 1 1 1
Print Height [mm] 12,5 12,5 12,5 12,5
Horizontal Resolution [dpi] 900 900 900 900
Vertical Resolution [dpi] 300 300 600 600
Print Speed at 300dpi [m/min] 60 30 90 240
Print Length (at 300 dpi) [m] 2 2 2 6
Includes iDesign Software ✔︎ ✔︎ ✔︎ ✔︎
OLED Display ✔︎ ✔︎ ✔︎ ✔︎
Max. Number of Texts Unlimited Unlimited Unlimited Unlimited
Text Creation and Edition at the Controller ✗︎ ✗︎ ✗︎ ✗︎
Text Fields ✔︎ ✔︎ ✔︎ ✔︎
Logos ✔︎ ✔︎ ✔︎ ✔︎
Date and Time ✔︎ ✔︎ ✔︎ ✔︎
Date Offsets (expirations) ✔︎ 🛇︎ ✔︎ ✔︎
Counters ✔︎ 🛇︎ ✔︎ ✔︎
Variables ✔︎ 🛇︎ ✔︎ ✔︎
Variable Entry at the Controller ✔︎ 🛇︎ ✔︎ ✔︎
Shift Codes 🛇︎ 🛇︎ ✔︎ ✔︎
Action Fields (references) 🛇︎ 🛇︎ ✔︎ ✔︎
Barcodes 🛇︎ 🛇︎ ✔︎ ✔︎
2D Barcodes 🛇︎ 🛇︎ ✔︎ ✔︎
Password Protected Menus 🛇︎ 🛇︎ 🛇︎ ✔︎
Database Printing 🛇︎ 🛇︎ ✔︎ ✔︎
Configurable I/Os 🛇︎ 🛇︎ 🛇︎ ✔︎
Copy with USB-Pen (USB-A) ✔︎ ✔︎ ✔︎ ✔︎
USB Connection to the PC (USB-C) ✔︎ ✔︎ ✔︎ ✔︎
Ethernet 🛇︎ ✔︎ ✔︎ ✔︎
RS232 ✔︎ ✔︎ ✔︎ ✔︎
RS422 ✗︎ ✗︎ ✗︎ ✗︎
Wireless LAN option option option option
Bluetooth ✗︎ ✗︎ ✗︎ ✗︎
