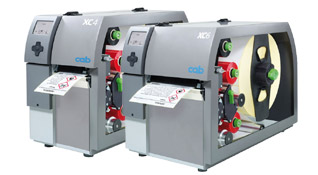

Cab XC

The Cab^® XC printers have the particularity of having two printheads for two different ribbon rolls, thus allowing the printing of labels with two distinct colors. They are the perfect solution for GHS labels, using a black ink ribbon and a red ink ribbon to print the danger symbols. These printers allow widths of 10cm or 16cm on the 6 inches model with a 300dpi resolution.

Brochure Cab XC

Made in Germany

The Cab^® brand is very popular in Germany and when choosing a model from this manufacturer you will be acquiring a well-built and long-lasting high-quality printer.

"Just-in-Time" Printing

The problem of keeping stocks of labels with variable information that eventually gets obsolete is a thing of the past. Printing the labels when you really need them saves time, money and prevents headaches.

For Any Label Size

Models with different print widths to support big labels up to 16cm wide. You will be able to create readable labels without having to omit any information.

Print in 2 Colors

With two printheads and two ribbon systems, you can print two-color labels, simply by loading print ribbons with the desired colors.

Perfect for GHS Labels

Using a black print ribbon and a red print ribbon, you can print the danger pictograms with ease, in a single pass-through. Avoid the problem of having pre-printed labels with the several diamonds and print unalignments with them.

Real Time Clock

The printer has an internal clock so that you can print the exact date and time in which each individual label of the print job is effectively printed.

Easy to Use

It is very simple to load the label roll and the print ribbon into the printer. Furthermore, you have a display where you can easily change print settings.

Maintenance Free

Built only with quality materials, you will not find a single rusty spot and, besides the occasional cleaning of adhesive accumulation, there is no need for lubrication or maintenance.

You can Count on Us

We are not here to simply sell you a printer, we want to provide a solution. Starting with counseling before the purchase and helping with the installation, but also supplying your custom labels and different types of print ribbons, and going all the way to replacing worn out parts (rubber roll, bearings, printheads) and other repairs, we will always assist you.

Specifications

Type
Thermal-Transfer Printer
Brand
Cab
Models
XC4
XC6

*Each model has several options
Print Methods
Thermal-Transfer
Type of Ribbon
Up to 360m, OC or IC
Maximum Print Speed
125mm/s
Print Resolution
300dpi
Print Width
105mm (model XC4)
162mm (model XC6)
Maximum Roll Width
116mm (model XC4)
176mm (model XC6)
Core Diameter
76mm
Unwinder Capacity
300mm External Diameter
Sensors
Transmissive and Reflective (to detect space between labels and black mark)
HMI Display
Yes
PC Software
cablabel S3 Lite
HMI Languages
English
....
Ports
1x Ethernet 10/100
1x USB 2.0 (Type B)
2x USB 2.0 (Type A)
1x Peripheral
1x Power Connection
(other ports as option)
Electrical
100/240V AC, 50/60Hz, 300W
Weight
22 kg (model XC4, without options or rolls)
24 kg (model XC6, without options or rolls)
Dimensions (Width x Depth x Height)
248mm x 554mm x 395mm (model XC4, with closed cover)
358mm x 554mm x 395mm (model XC6, with closed cover)
Typical Accessories
WiFi b/g
Cutter
External Rewinder

*Some options are only available from factory and cannot be installed afterwards.
The installation of options after purchase has additional costs when compared with factory installed options.
Some options cannot be combined.
