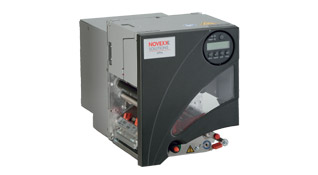

Novexx DPM
Line of printer modules that Novexx® acquired from Avery® that have some peculiar characteristics, such as a 5 inches model, 300dpi near-edge printheads and the included ribbon-saver system. Available in both left- and right-hand versions, so that you can equip your print-and-apply system no matter its orientation. There are 10, 13 and 16cm models with resolutions of 300dpi.
Renowned Brand
Novexx® bought the classic line of printer modules from Avery® and when choosing a model from this manufacturer you will be acquiring a well-built and long-lasting high-quality printer.
High-end Printer
These printers are at the top of the class when it comes to industrial printers. Besides bringing a larger range of features, it is in the quality of their construction where you can feel the differences. With most of the plastic parts replaced with metal components, these sturdy printers are made to last.
"Just-in-Time" Printing
The problem of keeping stocks of labels with variable information that eventually gets obsolete is a thing of the past. Printing the labels when you really need them saves time, money and prevents headaches.
Print Bigger
The 6 inches model allows a wider print width to support large labels with widths up to 16cm. You will be able to create readable labels without having to omit any information.
Real Time Clock
The printer has an internal clock so that you can print the exact date and time in which each individual label of the print job is effectively printed.
Easy to Use
It is very simple to load the label roll and the print ribbon into the printer. Furthermore, you have a display where you can easily change print settings.
Maintenance Free
With a long lifespan, built only with quality materials, you will not find a single rusty spot and, besides the occasional cleaning of adhesive accumulation, there is no need for lubrication or maintenance.
Print and Apply
Equip your labeler with this fast printer module to achieve high application rates. With a print speed of over 400mm/s and precise label feeding, you can push your print-apply system to the very limit.
Near-Edge Printhead
This model requires special Near-Edge type ribbons which allow a good print quality even at faster print speeds. It comes with a ribbon saving system included as a standard feature.
You can Count on Us
We are not here to simply sell you a printer, we want to provide a solution. Starting with counseling before the purchase and helping with the installation, but also supplying your custom labels and different types of print ribbons, and going all the way to replacing worn out parts (rubber roll, bearings, printheads) and other repairs, we will always assist you.
Specifications
-
Type
Near-Edge Thermal-Transfer Printer Module
-
Brand
Novexx
-
Models
DPM 4" 300dpi LH
DPM 4" 300dpi RH
DPM 5" 300dpi LH
DPM 5" 300dpi RH
DPM 6" 300dpi LH
DPM 6" 300dpi RH*Each model has several options
-
Print Methods
Direct-Thermal
Thermal-Transfer -
Type of Ribbon
Up to 1000m, IC, Near Edge
-
Maximum Print Speed
400mm/s (models DPM 4" e DPM 5")
300mm/s (models DPM 6") -
Print Resolution
300dpi
-
Print Width
106mm (models DPM 4")
127mm (models DPM 5")
160mm (models DPM 6")
-
Maximum Roll Width
136mm (models DPM 4" e DPM 5")
190mm (models DPM 6") -
HMI Display
Yes, can be rotated
-
PC Software
Not Included
-
HMI Languages
English
.... -
Ports
1x RS-232
2x USB (Type A)
1x USB (Type B)
1x Parallel Port
1x Ethernet 10/100
1x Applicator USI
1x Power Connection
(other ports as option) -
Electrical
100/240V AC, 50/60Hz
-
Weight
17 kg (models DPM 4" and DPM 5", without options or rolls)
18 kg (models DPM 6", without options or rolls) -
Dimensions (Width x Depth x Height)
246mm x 429mm x 303mm (models DPM 4" and DPM 5", with closed cover)
246mm x 483mm x 303mm (models DPM 6", with closed cover) -
Typical Accessories
Long Peeler Bar
*Some options are only available from factory and cannot be installed afterwards.
The installation of options after purchase has additional costs when compared with factory installed options.
Some options cannot be combined.
Alternative Products
-
PEM-5 ▶︎
Novexx Print Engine127mm, 400mm/s
300dpi
RH or LH Versions -
ZE500-4 ▶︎
Zebra Print Engine104mm, 305mm/s
203dpi or 300dpi
RH or LH Versions -
S84ex ▶︎
Sato Print Engine104mm, 406mm/s
203dpi, 305dpi or 609dpi
RH or LH Versions -
A-4212 Mark II ▶︎
Datamax Print Engine104mm, 304mm/s
203dpi
RH or LH Versions
