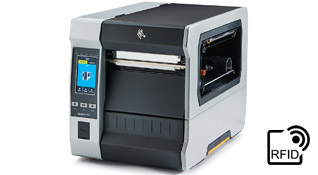

Zebra ZT620 RFID

This high-end industrial printer from Zebra^®, has most plastic parts replaced with metal components and belongs to the line of the sturdy and classic Xi printers. Allows prints up to 17cm with resolutions of 203dpi or 300dpi.

Brochure Series Zebra ZT600

Brochure Series Zebra ZT600 RFID

Renowned Brand

The Zebra^® brand is world-class famous and when choosing a model from this manufacturer you will be acquiring a well-built and long-lasting high-quality printer.

High-end Printer

These printers are at the top of the class when it comes to industrial printers. Besides bringing a larger range of features, it is in the quality of their construction where you can feel the differences. With most of the plastic parts replaced with metal components, these sturdy printers are made to last.

"Just-in-Time" Printing

The problem of keeping stocks of labels with variable information that eventually gets obsolete is a thing of the past. Printing the labels when you really need them saves time, money and prevents headaches.

Print Bigger

Printer with a wider print width to support larger labels with widths up to 17cm. You will be able to create readable labels without having to omit any information.

Hinged Cover

Comes with an articulated metal cover so that you are able to open the printer even when you put it in narrow places.

Real Time Clock

The printer has an internal clock so that you can print the exact date and time in which each individual label of the print job is effectively printed.

Easy to Use

It is very simple to load the label roll and the print ribbon into the printer. Furthermore, you have a display where you can easily change print settings.

Maintenance Free

Built to last over 15 years, only with quality materials, you will not find a single rusty spot and, besides the occasional cleaning of adhesive accumulation, there is no need for lubrication or maintenance.

RFID

With this printer you can write customized data onto the RFID chips of your smart labels.

Explore all the Possibilities of Your Printer

We recommend that you use the Legitronic^® labeling software to get the most out of your printer, allowing you to create simple or complex labels, such as the advanced GS1 type labels, with variables, counters and database connections.

ZPL Language

Zebra^® is the creator of ZPL, and so, this printer will have the full support for the famous ZPL command language, the most used language in the market by several software and dedicated applications.

You can Count on Us

We are not here to simply sell you a printer, we want to provide a solution. Starting with counseling before the purchase and helping with the installation, but also supplying your custom labels and different types of print ribbons, and going all the way to replacing worn out parts (rubber roll, bearings, printheads) and other repairs, we will always assist you. We also provide a hotline for fast support related to the labeling software Legitronic^®.

Specifications

Type
Thermal-Transfer Printer
Brand
Zebra
Models
ZT620 RFID 203dpi
ZT620 RFID 300dpi

*Each model has several options
Print Methods
Direct-Thermal
Thermal-Transfer
Type of Ribbon
Up to 450m, OC
Maximum Print Speed
305mm/s (ZT620 RFID 203dpi)
203mm/s (ZT620 RFID 300dpi)
Print Resolution
203dpi (ZT620 RFID 203dpi)
300dpi (ZT620 RFID 300dpi)
Print Width
168mm
Maximum Roll Width
180mm
Core Diameter
25mm ~ 76mm
Fan-fold
Unwinder Capacity
200mm External Diameter
Sensors
Transmissive and Reflective (to detect space between labels and black mark)
HMI Display
Yes
RFID
UHF EPC Gen 2 / ISO 18000
PC Software
Legitronic (recommended, not included)
HMI Languages
English
Portuguese
....
Ports
1x RS-232
1x USB 2.0 (Type B)
2x USB 2.0 (Type A)
1x Ethernet 10/100/1000
1x Power Connection
(other ports as option)
Electrical
100/240V AC, 50/60Hz / max. 156W ENERGY STAR
Weight
26 kg (without options or rolls)
Dimensions (Width x Depth x Height)
342mm x 505mm x 396mm (with closed cover)
Typical Accessories
WiFi 802.11 a/b/c/g/n
Parallel Port
Rewinder e Label Peel-off System
Cutter with Catching Tray
Color Touch-Screen

*Some options are only available from factory and cannot be installed afterwards.
The installation of options after purchase has additional costs when compared with factory installed options.
Some options cannot be combined.
