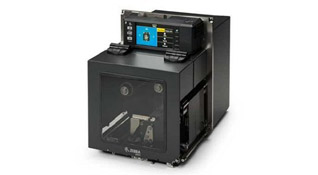

Zebra ZE511
These printer modules from Zebra® have a very high-quality and are the evolution of the previous ZE500-4" models with a renewed display. Available in both left- and right-hand versions, so that you can equip your print-and-apply system no matter its orientation. There are models with resolutions of 203dpi, 300dpi or 600dpi and RFID as an option.
Renowned Brand
The Zebra® brand is world-class famous and when choosing a model from this manufacturer you will be acquiring a well-built and long-lasting high-quality printer.
High-end Printer
These printers are at the top of the class when it comes to industrial printers. Besides bringing a larger range of features, it is in the quality of their construction where you can feel the differences. With most of the plastic parts replaced with metal components, these sturdy printers are made to last.
"Just-in-Time" Printing
The problem of keeping stocks of labels with variable information that eventually gets obsolete is a thing of the past. Printing the labels when you really need them saves time, money and prevents headaches.
Real Time Clock
The printer has an internal clock so that you can print the exact date and time in which each individual label of the print job is effectively printed.
Easy to Use
It is very simple to load the label roll and the print ribbon into the printer. Furthermore, you have a display where you can easily change print settings.
Maintenance Free
Built to last over 15 years, only with quality materials, you will not find a single rusty spot and, besides the occasional cleaning of adhesive accumulation, there is no need for lubrication or maintenance.
RFID
With the RFID models, you can write data into the RFID chips of your smart labels.
Print and Apply
Equip your labeler with this fast printer module to achieve high application rates. With a print speed of over 300mm/s and precise label feeding, you can push your print-apply system to the very limit.
Explore all the Possibilities of Your Printer
We recommend that you use the Legitronic® labeling software to get the most out of your printer, allowing you to create simple or complex labels, such as the advanced GS1 type labels, with variables, counters and database connections.
ZPL Language
Zebra® is the creator of ZPL, and so, this printer will have the full support for the famous ZPL command language, the most used language in the market by several software and dedicated applications.
You can Count on Us
We are not here to simply sell you a printer, we want to provide a solution. Starting with counseling before the purchase and helping with the installation, but also supplying your custom labels and different types of print ribbons, and going all the way to replacing worn out parts (rubber roll, bearings, printheads) and other repairs, we will always assist you. We also provide a hotline for fast support related to the labeling software Legitronic®.
Specifications
-
Type
Thermal-Transfer Printer Module
-
Brand
Zebra
-
Models
ZE511 203dpi LH
ZE511 203dpi RH
ZE511 300dpi LH
ZE511 300dpi RH
ZE511 600dpi LH
ZE511 600dpi RH
ZE511 203dpi LH RFID
ZE511 203dpi RH RFID
ZE511 300dpi LH RFID
ZE511 300dpi RH RFID*Each model has several options
-
Print Methods
Direct-Thermal
Thermal-Transfer -
Type of Ribbon
Up to 600m, OC
-
Maximum Print Speed
457mm/s (ZE511 203dpi)
356mm/s (ZE511 300dpi)
152mm/s (ZE511 600dpi) -
Print Resolution
203dpi (ZE511 203dpi)
300dpi (ZE511 300dpi)
600dpi (ZE511 600dpi) -
Print Width
104mm
-
Maximum Roll Width
114mm
-
Sensors
Transmissive and Reflective (to detect space between labels and black mark)
-
HMI Display
Yes, can be rotated
-
RFID
UHF EPC Gen 2 V2 / ISO 18000 (RFID models)
-
PC Software
Legitronic (recommended, not included)
-
HMI Languages
English
Portuguese
.... -
Ports
1x RS-232
1x USB 2.0 (Type B)
2x USB 2.0 (Type A)
1x Ethernet 10/100
1x Applicator
1x Power Connection
(other ports as option) -
Electrical
90/260V AC, 50/60Hz
-
Weight
14,7 kg (models ZE511, without options or rolls)
-
Dimensions (Width x Depth x Height)
245mm x 379mm x 300mm (with closed cover)
-
Typical Accessories
WiFi 802.11ac
Parallel Port*Some options are only available from factory and cannot be installed afterwards.
The installation of options after purchase has additional costs when compared with factory installed options.
Some options cannot be combined.
